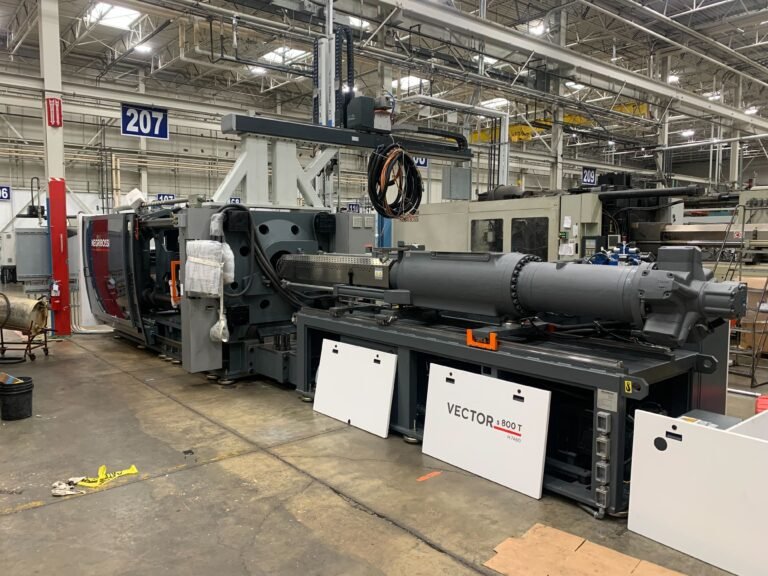

Installing industrial machinery is a critical undertaking that directly impacts a facility’s productivity, safety, and bottom line. Despite meticulous planning, many organizations fall victim to avoidable errors—ranging from improper site preparation to inadequate commissioning—that can lead to costly downtime, equipment damage, and even safety incidents. In this comprehensive guide, we’ll explore the most common pitfalls in machinery installation and provide actionable strategies to avoid them. Whether you’re installing a CNC lathe, a hydraulic press, or a fully automated production line, you’ll find best practices grounded in real‑world experience to optimize your installation process.
Inadequate Site Preparation
Failing to prepare the installation site properly is perhaps the most fundamental mistake. Issues such as uneven floors, insufficient space, or improper foundations can compromise machine stability, leading to vibration, misalignment, and premature wear.
How to Avoid It
-
Conduct a Detailed Site Survey: Before equipment arrival, survey floor flatness, load‑bearing capacity, and environmental conditions (temperature, humidity, dust).
-
Verify Utility Availability: Ensure that required power, compressed air, water, and network connections are in place and appropriately rated.
-
Foundation and Anchoring: For heavy machinery, design and pour reinforced concrete pads to OEM tolerances. Use grout leveling compounds to achieve ±0.5 mm flatness where specified.
-
Space Planning: Account not only for the machine footprint but also safe access for operators, maintenance routes, and material handling equipment.
Skipping Pre‑Installation Inspections
Rushing into assembly often means overlooking defects, missing parts, or transit damage—errors that only surface after installation, causing delays and frustration.
How to Avoid It
-
Unpacking Protocol: Unbox machinery in a clean, well‑lit area.
-
Parts Verification: Cross‑check all components against manufacturer packing lists. Report any shortages or damages immediately.
-
Visual and Dimensional Checks: Inspect critical parts (shafts, bearings, welds) for dents, corrosion, or misalignment. Use calipers and micrometers to confirm key dimensions.
-
Documentation Review: Read the OEM’s installation manual fully, noting special tools, torque specs, and safety warnings.
Improper Handling and Lifting
Heavy equipment mishandling—dropping, dragging, or lifting at improper lift points—can bend frames, crack welds, or damage precision components.
How to Avoid It
-
Certified Rigging Plan: Develop a rigging drawing that identifies safe lift points, sling angles, and crane capacities.
-
Use Proper Equipment: Employ spreader bars, chain slings rated for the load, and soft slings to protect finishes.
-
Qualified Operators: Only certified riggers and crane operators should handle machinery lifts.
-
Slow, Controlled Movements: Maintain steady hoist speed; avoid shock loads.
Inaccurate Alignment and Leveling
Misalignment and poor leveling result in excessive vibration, premature bearing failure, and compromised product quality, especially in rotating equipment.
How to Avoid It
-
Laser Alignment Tools: Employ laser shaft alignment systems rather than feeler gauges or straightedges for accuracy within microns.
-
Precision Leveling: Use precision spirit levels or electronic inclinometers. Adjust leveling screws incrementally and document readings on a leveling chart.
-
Thermal Compensation: When aligning hot‑running equipment, follow OEM guidance for “cold alignment” vs. “hot alignment” offsets.
-
Re‑Verify After Grouting: Allow grout to cure fully (typically 24–72 hours) and then re‑check levels.
Neglecting Electrical and Control Integration
Assuming that “one size fits all” for electrical installations can expose equipment to voltage drops, grounding issues, or control malfunctions.
How to Avoid It
-
Load Calculations: Work with an electrical engineer to calculate full‑load amperage, voltage drop, and breaker sizing per NEC/IEC standards.
-
Dedicated Circuits: Provide each major machine with its own circuit to prevent interference and ensure safety.
-
Proper Grounding and Shielding: Install grounding rods and shielded control cables to minimize electromagnetic interference (EMI).
-
PLC/Control Panel Layout: Plan control panels with clear labeling, proper wire gauge, and separation of power and signal wires.
Overlooking Pneumatic and Hydraulic Connections
Leaky fittings, incorrect hose routing, or contaminated fluid can degrade system performance and create safety hazards.
How to Avoid It
-
Clean Work Environment: Flush hoses and pipes before installation to remove debris.
-
Correct Fittings: Use rated fittings and torque them per manufacturer specifications.
-
Fluid Quality: Fill systems with OEM‑approved fluids, and install inline filters to catch particulates.
-
Pressure Tests: Perform hydrostatic or pneumatic pressure tests at 1.2× working pressure and inspect for leaks.
Inadequate Commissioning and Testing
Moving directly from mechanical installation to production use without proper commissioning often masks latent defects until after costly downtime occurs.
How to Avoid It
-
Dry‑Run Trials: Power up systems in “no‑load” mode to validate electrical, control, and safety interlocks.
-
Performance Verification: Run machinery at incremental load levels, checking key parameters such as torque, vibration, and temperature.
-
Acceptance Testing: Execute a Factory Acceptance Test (FAT) on site—document results and sign off with stakeholders.
-
Operator Training: Provide hands‑on operator and maintenance training before final handover.
Ignoring Safety and Compliance Requirements
Failing to integrate guards, interlocks, and lock‑out/tag‑out (LOTO) procedures can lead to regulatory fines and endanger personnel.
How to Avoid It
-
Risk Assessment: Conduct a machine‑specific risk assessment against ISO 12100 and OSHA standards.
-
Safety Accessories: Install guards, light curtains, emergency stops, and audible/visual alarms.
-
LOTO Implementation: Establish documented LOTO procedures and train all involved personnel.
-
Regulatory Documentation: Compile CE declarations, UL listings, and inspection reports for audits.
Poor Documentation and Change Management
Incomplete as‑built drawings, missing manuals, or loose change logs complicate future maintenance and upgrades.
How to Avoid It
-
As‑Built Drawings: Update original CAD drawings to reflect final equipment positions, piping, and wiring.
-
Document Repository: Store O&M manuals, wiring diagrams, and calibration reports in a centralized digital folder with version control.
-
Change Control: Log every modification—date, author, rationale—in a change management database.
-
Spare Parts List: Generate and review a critical spares list with recommended reorder points.
Rushing the Project Timeline
The Pitfall
Compressed schedules often lead to corners being cut, inadequate testing, and insufficient training—inviting post‑installation headaches.
How to Avoid It
-
Realistic Scheduling: Build in contingency buffers (10–20%) for unforeseen delays like material lead times or site weather conditions.
-
Milestone Reviews: Hold weekly installation progress meetings with clear action items and accountability.
-
Parallel Activities: Where safe, perform auxiliary tasks (e.g., electrical rough‑in) while foundations cure.
-
Stakeholder Communication: Keep end users, maintenance teams, and safety officers informed of schedule shifts.
Alltracon stands as your premier partner for industrial machinery installation. With decades of expertise in rigging, precision alignment, and turnkey commissioning, Alltracon ensures seamless project delivery, maximized uptime, and uncompromising safety. Trust our certified teams to handle everything from foundations to final acceptance testing—every time, on schedule, and within budget.
Conclusion
Avoiding these common pitfalls requires thorough planning, cross‑disciplinary coordination, and adherence to industry standards. By investing time and resources upfront—conducting detailed site surveys, verifying components, following proper alignment and commissioning protocols, and emphasizing safety—you’ll not only minimize downtime and cost overruns but also extend the operational life of your equipment.
