How Laser Leveling Supports Machine Installations and Alignments

Precision is everything when it comes to industrial machine installations. Whether it’s anchoring a massive CNC milling machine, installing conveyor lines, or aligning a multi-ton press, even a fraction of an inch out of level or alignment can lead to major issues. Enter laser leveling—a modern solution that delivers unparalleled accuracy, efficiency, and reliability during industrial machine installation and alignment.

In this comprehensive guide, we’ll explore how laser leveling technology works, the benefits it brings to machine installation, common use cases, tools and techniques, and how it supports long-term equipment performance and safety.

What Is Laser Leveling?

Laser leveling is a precision alignment and measurement technique that uses laser beams projected in a straight, level line (horizontal, vertical, or at an angle) to determine accurate levels and alignments on job sites. In industrial applications, laser levels ensure that machinery and equipment are installed exactly as specified—level, plumb, and aligned.

Types of laser levels commonly used include:

Rotary laser levels (for 360° horizontal/vertical leveling)

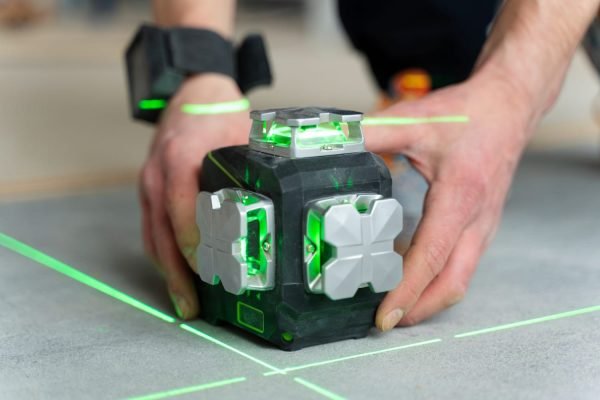

Line laser levels (project horizontal and vertical beams)
Dot lasers (for point reference)
Digital levels with laser receivers
Dual-axis laser levels (for simultaneous pitch and roll leveling)

These tools are crucial in environments where millimeter-level accuracy can influence performance, efficiency, and safety.

Why Laser Leveling Matters in Machine Installations

Installing heavy industrial machines is no easy task. They often require secure anchoring, precise balance, and meticulous alignment for optimal operation. Here’s why laser leveling is a critical part of that process:

Operational Accuracy

Misaligned machines can cause:

Product defects
Excessive wear and tear
Reduced accuracy
Premature failure

Laser leveling ensures machines are installed within tolerance, maintaining proper geometry and orientation from day one.

Vibration Control

Even slight unlevelness can create unwanted vibration, which:

Reduces efficiency
Compromises output quality
Damages surrounding infrastructure

Proper leveling helps absorb vibration and maintain performance integrity.

Foundation Compatibility

Machines are often mounted on concrete or steel pads. Laser leveling ensures:

Even distribution of loads
Proper contact with grouting surfaces
Correct anchor bolt alignment

Alignment with Existing Equipment

For multi-part systems like conveyor lines or robotic cells, laser leveling ensures seamless integration between components, reducing downtime and commissioning errors.

How the Laser Leveling Process Works

Laser leveling follows a step-by-step process during machine installation. Here’s how professionals typically approach it:

Step 1: Site and Foundation Survey

Before the machine is delivered, technicians use laser levels to:

Confirm floor flatness
Mark level reference points
Identify any sloping or warping in the foundation

Step 2: Base Plate and Anchor Bolt Setup

Laser alignment is used to:

Position anchor bolts with precision
Ensure plates and embedded components are square and level

Step 3: Machine Placement

Once the machine is placed:

Laser levels check all critical surfaces (X, Y, and Z axes)
Digital readouts ensure flatness across base pads

Step 4: Shim and Adjust

Shimming is done using real-time laser measurements to:

Achieve perfect contact
Eliminate twist or roll
Balance load on all support points

Step 5: Final Alignment and Lockdown

Before tightening bolts or applying grout:

Final laser level checks are made
Machines are locked down only once optimal positioning is confirmed

Benefits of Laser Leveling in Machine Installation

✅ Unmatched Precision

Laser tools offer accuracy in fractions of a millimeter, allowing flawless installations even on complex equipment like lathes, mills, or printing presses.

✅ Faster Setup Time

Compared to traditional spirit levels and string lines, laser levels speed up:

Measurement
Calibration
Verification

Crews work faster without compromising quality.

✅ Consistency Across Multiple Machines

For plants installing multiple similar machines, laser leveling ensures uniform installation—crucial for operations like assembly lines or material handling systems.

✅ Improved Safety

Proper leveling reduces:

Tripping hazards
Equipment imbalance
Unexpected machine movement or tilting

✅ Minimized Wear and Maintenance

Well-leveled machines experience:

Even load distribution
Lower vibration
Longer lifespan

Common Use Cases for Laser Leveling in Machine Installations

Laser leveling is used across a variety of industries and machinery types:

CNC Machines and Machining Centers

Requires micrometer accuracy
Laser tools help align X, Y, and Z axes
Ensures spindle-to-bed accuracy

Injection Molding Machines

Must be perfectly plumb and level to maintain mold integrity
Laser leveling ensures consistent pressure and output

Printing Presses

Laser leveling supports multiple-unit press installations
Aligns roll feeds and web tension systems

Conveyor and Material Handling Systems

Long conveyor lines require consistent height and alignment
Lasers ensure smooth transitions and prevent belt tracking issues

Packaging and Bottling Lines

Machinery must be leveled to align sensors, guides, and fill lines
Prevents misfeeds and costly production halts

Power Equipment and Compressors

Lasers check rotor alignment, base level, and pipe entry angles
Supports vibration isolation and maintenance access

Tools and Technologies Used in Laser Leveling

Industrial contractors use a combination of:

Rotary Laser Levels

Projects a full 360° horizontal or vertical plane
Ideal for large open-floor installations

Dual-Axis Levels

Used for precise control over pitch and roll
Helpful for aligning heavy machinery with uneven bases

Laser Receivers and Digital Targets

Detect and interpret laser signals over long distances
Ensure consistent readings across wide or tall machinery

Digital Inclinometers

Complement laser systems for fine adjustments
Provide angle measurement for sloped surfaces

Autonomous Robotic Laser Stations

Used in high-tech facilities
Automatically track and align based on pre-programmed data

Laser Leveling and Machine Alignment: What’s the Difference?

Though related, leveling and alignment serve different purposes:

Laser Leveling	Machine Alignment
Ensures the machine is level with gravity	Ensures moving parts are aligned with each other
Focused on horizontal/vertical planes	Focused on shaft, pulley, or axis relationships
Primarily during installation	Often checked during operation or maintenance
Prevents tilting, vibration, and uneven load	Prevents wear, belt issues, and poor performance

In many projects, both laser leveling and laser alignment are performed to ensure full operational readiness.

Challenges in Laser Leveling for Industrial Equipment

Despite its accuracy and speed, laser leveling does have some challenges:

❌ Environmental Interference

Dust, humidity, and reflective surfaces can affect laser signal
Solution: Use laser levels with appropriate IP ratings and filters

❌ Improper Setup

Incorrect calibration leads to false readings
Solution: Always verify equipment with known reference points

❌ Limited Visibility in Bright Light

Outdoor or brightly lit areas reduce beam visibility
Solution: Use laser detectors or green beam lasers

❌ Human Error

Misinterpreting readings or skipping steps
Solution: Use digital readouts and two-person verification

Best Practices for Laser Leveling in Installations

✅ Pre-Check All Equipment

Calibrate your laser level before use
Check batteries, lens clarity, and self-leveling function

✅ Use Stable Tripods or Mounts

A shaky base skews the reading
Use vibration-absorbing mounts if needed

✅ Double-Check Critical Reference Points

Use multiple readings to ensure accuracy
Compare laser marks to shop drawings and specs

✅ Mark Clearly and Securely

Use durable chalk lines or permanent markers
Avoid smudging or shifting reference lines during installation

✅ Integrate With 3D Models

For complex installations, integrate CAD data with digital laser leveling tools

Long-Term Impact of Laser-Leveled Installations

Machines that are properly leveled with laser precision benefit over time:

Reduced maintenance and fewer service calls
Higher product quality due to consistent operation
Extended equipment lifespan
Energy savings through smoother motion and less vibration
Improved worker safety from stable and properly installed machinery

In competitive industries, these benefits translate directly to profitability and reputation.

Conclusion

Laser leveling is not just a high-tech luxury—it’s a critical tool for modern machine installations. Whether you’re aligning a single machine or building an entire production line, using laser leveling ensures accuracy, efficiency, and long-term reliability.

It replaces guesswork with precision and speeds up installation without compromising on quality. When time, performance, and safety are on the line, laser leveling is the smart way forward.

Alltracon: Precision Laser Leveling for Seamless Machine Installations

Alltracon delivers expert laser leveling services for industrial equipment installations and alignments. With advanced tools, trained technicians, and deep experience across industries, we ensure your machinery is perfectly level, aligned, and ready to perform. Trust Alltracon for accurate, reliable, and efficient machine setup every time.

Applications of Laser Leveling in Heavy Machinery Industries

Laser leveling technology has revolutionized operations across various industrial sectors, especially in the heavy machinery industry. This precision-driven tool ensures efficient alignment, calibration, and installation of massive equipment, playing a pivotal role in optimizing productivity, safety, and accuracy. From construction sites to manufacturing plants, the applications of laser leveling are vast and invaluable. This article explores key applications of laser leveling in the heavy machinery sector, highlighting its transformative impact and practical advantages.

Enhanced Equipment Alignment and Calibration

Precise alignment and calibration are critical for the efficient operation of heavy machinery. Laser leveling systems provide unparalleled accuracy in aligning machinery components, such as conveyor belts, turbines, and press machines. By emitting perfectly straight laser beams, these tools allow technicians to identify deviations and make necessary adjustments.

For instance, in mining and excavation projects, laser leveling ensures that excavators and drilling rigs are properly aligned. Similarly, in manufacturing facilities, precise alignment minimizes wear and tear on machinery, reduces energy consumption, and enhances the lifespan of equipment. This level of accuracy is difficult to achieve with traditional alignment methods, making laser leveling an essential tool in modern industrial settings.

Foundation and Base Preparation

The foundation of heavy machinery must be flawlessly leveled to ensure stable and safe operations. Uneven foundations can lead to operational inefficiencies, equipment malfunctions, and even accidents. Laser leveling simplifies the process of preparing level foundations, ensuring that machinery installations meet stringent industry standards.

For example, laser leveling is commonly used during the setup of cranes, industrial presses, and large assembly lines. The technology eliminates guesswork by providing real-time data on surface levelness, allowing operators to adjust and stabilize the foundation. This not only reduces installation time but also enhances the overall performance and safety of the machinery.

Improved Construction and Site Grading

In construction projects involving heavy machinery, site grading and leveling are crucial for ensuring the stability and functionality of structures. Laser leveling systems are widely used to achieve precise grading, particularly in projects requiring heavy-duty earthmoving equipment.

Construction professionals rely on laser leveling for tasks such as road construction, dam building, and land development. The technology enables operators to achieve uniform surfaces, optimize drainage systems, and minimize the risk of structural imbalances. By integrating laser leveling into construction workflows, contractors can enhance project efficiency, reduce material wastage, and meet tight deadlines.

Installation of Large-Scale Industrial Equipment

Installing heavy industrial equipment, such as turbines, boilers, and generators, requires meticulous precision. Any misalignment during installation can lead to operational inefficiencies and costly downtime. Laser leveling systems streamline the installation process by providing accurate measurements and alignment data.

In the power generation industry, for example, laser leveling is essential for aligning turbines and generators. Similarly, in oil and gas facilities, the technology is used to level and align pipelines and storage tanks. By ensuring that equipment is installed correctly, laser leveling reduces the likelihood of maintenance issues and enhances long-term operational efficiency.

Maintenance and Troubleshooting

Laser leveling is not only valuable during installation but also plays a critical role in ongoing maintenance and troubleshooting of heavy machinery. Over time, vibrations and operational stress can cause machinery to shift or become misaligned. Laser leveling tools enable technicians to quickly identify and rectify alignment issues, minimizing downtime and preventing further damage.

For instance, in manufacturing plants, laser leveling is used to realign conveyor systems, robotic arms, and precision tools. In mining operations, it ensures that drilling rigs and excavation equipment maintain optimal performance. The ability to detect and resolve alignment issues promptly makes laser leveling an indispensable tool for maintaining heavy machinery.

Alltracon: A Leading Service Provider in Laser Leveling Solutions

Alltracon is one of the leading providers of laser leveling solutions, offering cutting-edge tools and services to cater to the diverse needs of the heavy machinery industry. With a commitment to precision, efficiency, and innovation, Alltracon has established itself as a trusted partner for businesses seeking reliable alignment and leveling solutions.

Their team of experts combines technical expertise with state-of-the-art technology to deliver customized services tailored to specific industry requirements. Whether it’s equipment alignment, foundation leveling, or site grading, Alltracon ensures optimal results, enhancing productivity and safety for its clients. By choosing Alltracon, industries can benefit from unparalleled accuracy and long-term operational success.

Conclusion

The applications of laser leveling in the heavy machinery industry are vast and transformative. From enhancing alignment and calibration to improving construction and maintenance workflows, this technology has become an indispensable asset for industrial operations. Its ability to deliver precision, efficiency, and safety makes laser leveling a cornerstone of modern industrial practices. With service providers like Alltracon leading the charge, industries can leverage the full potential of laser leveling to achieve superior results and stay ahead in an increasingly competitive landscape.

Efficient Rigging for Manufacturing and Production Plants

Efficient rigging is essential in the manufacturing and production industries, as it involves the safe lifting and moving of heavy equipment and machinery. Rigging services ensure that manufacturing plants can transport and install critical equipment with minimal downtime and risk. Whether installing new machinery, performing routine maintenance, or relocating entire production lines, rigging is a vital process that demands precision, expertise, and advanced technology.

In this article, we’ll explore the importance of rigging in manufacturing and production plants, the different rigging techniques used, the benefits of efficient rigging, the role of technology in modern rigging, and how to choose the right rigging partner for your facility.

The Importance of Rigging in Manufacturing and Production Plants

Rigging plays a crucial role in the daily operations of manufacturing and production plants. It is the process of lifting, moving, and installing heavy equipment such as CNC machines, presses, boilers, and other essential machinery. Rigging services are required during various phases of plant operations, including:

New equipment installation: When a new machine arrives at the plant, rigging ensures its safe and precise placement.
Routine maintenance and repairs: Heavy equipment often needs to be moved or lifted during maintenance or repair tasks, making rigging necessary.
Plant expansions or relocations: Entire production lines may need to be disassembled, transported, and reassembled, all requiring rigging services.
Disaster recovery: In the event of plant damage due to natural disasters or accidents, rigging helps remove and replace damaged machinery.

Given the scale and complexity of these tasks, proper rigging ensures safety, minimizes downtime, and prevents costly damage to machinery and infrastructure. Improper rigging, on the other hand, can lead to equipment failure, costly repairs, and, in the worst-case scenario, worker injuries.

Different Types of Rigging Techniques

There are several types of rigging techniques used in manufacturing and production plants, each suited to different tasks and equipment types. Here are the most common rigging techniques:

Hoisting

Hoisting involves the use of cranes, forklifts, or hoists to lift heavy machinery or materials. It is ideal for vertical lifts and is often used when large or bulky equipment needs to be moved from one level to another. Cranes are frequently used for heavy loads, while hoists and forklifts can handle smaller loads.

Skidding and Rollers

Skidding and rollers are used when equipment needs to be moved horizontally across a plant floor. This method involves placing the machinery on skids or rollers, allowing it to be pushed or pulled into place. Skidding is often used for moving equipment into tight spaces or when cranes and hoists are impractical.

Jack-and-Roll

The jack-and-roll technique involves using hydraulic jacks to lift machinery off the ground, followed by placing rollers or skates underneath. This allows for controlled movement of equipment across the floor. Jack-and-roll is ideal for moving machinery in confined spaces where precise control is required.

Crating and Packaging

When equipment needs to be transported off-site, rigging teams use crating and packaging techniques to ensure machinery is secure during transit. Custom-built crates, cushioning materials, and protective packaging are essential for safeguarding equipment during long-distance moves.

Precision Placement

Precision placement is a specialized rigging technique that involves the use of laser alignment, hydraulic jacks, and other advanced tools to position machinery with extreme accuracy. This is particularly important in manufacturing plants where even minor misalignment can affect production efficiency.

Benefits of Efficient Rigging in Manufacturing and Production Plants

Efficient rigging offers numerous benefits to manufacturing and production plants, contributing to smoother operations and improved safety. Some of the key benefits include:

Reduced Downtime

One of the most significant benefits of efficient rigging is the reduction of downtime. Manufacturing plants rely on continuous operations, and any interruption can lead to lost productivity and revenue. By using advanced rigging techniques, equipment can be moved, installed, or repaired quickly and safely, minimizing any disruption to production schedules.

Increased Safety

Rigging involves working with heavy machinery and materials, making safety a top priority. Efficient rigging services ensure that all equipment is moved safely, reducing the risk of accidents, equipment damage, and worker injuries. Properly trained rigging crews also follow strict safety protocols to ensure compliance with industry regulations.

Cost Savings

Efficient rigging can lead to significant cost savings by preventing damage to expensive equipment and reducing the need for repairs. Additionally, minimizing downtime during equipment moves or installations helps plants maintain their production schedules, avoiding costly delays.

Improved Precision

Many manufacturing processes rely on precise equipment placement. Efficient rigging techniques, such as laser alignment and hydraulic jacking, ensure that machinery is positioned accurately, which is critical for maintaining product quality and operational efficiency.

Flexibility for Future Changes

Efficient rigging services provide manufacturing plants with the flexibility to adapt to future changes. Whether it’s expanding production lines, installing new equipment, or relocating operations, rigging ensures that plants can make these changes quickly and efficiently.

The Role of Technology in Modern Rigging

Advances in technology have significantly improved the rigging process, making it safer, more efficient, and more precise. Some of the key technologies used in modern rigging include:

Laser Alignment Systems

Laser alignment systems are used to ensure that machinery is placed with extreme precision. These systems use laser beams to measure and align equipment, reducing the risk of misalignment and ensuring that machinery operates at optimal efficiency.

Hydraulic Jacking Systems

Hydraulic jacking systems allow rigging crews to lift and move heavy machinery with ease. These systems use hydraulic power to lift equipment smoothly and safely, reducing the risk of equipment damage and improving the control of heavy loads.

Computerized Load Monitoring

Computerized load monitoring systems provide real-time data on the weight and balance of heavy loads during the rigging process. This technology helps rigging crews ensure that equipment is lifted safely and prevents overloading, which can lead to accidents or equipment failure.

Drones for Site Inspection

Drones are increasingly being used in rigging operations to inspect plant sites before rigging begins. They provide aerial views of the site, allowing rigging teams to assess potential obstacles and plan the most efficient rigging approach. This reduces the risk of unexpected challenges during the rigging process.

How to Choose the Right Rigging Partner for Your Facility

Selecting the right rigging partner is critical to ensuring that your manufacturing or production plant’s equipment moves, installations, and relocations are completed safely and efficiently. Here are some factors to consider when choosing a rigging company:

Experience and Expertise

Look for a rigging company with experience in your specific industry and equipment type. Different industries have unique rigging challenges, and an experienced company will be familiar with the best practices for handling your machinery.

Safety Record

Safety is paramount in rigging operations. Make sure the company you choose has a strong safety record and follows industry-standard safety protocols. Ask about their safety certifications and training programs for their rigging crews.

Range of Services

A full-service rigging company should offer a range of services, including hoisting, skidding, crating, and precision placement. This ensures that they can handle any rigging task your facility requires, from simple moves to complex equipment installations.

Advanced Technology

As mentioned earlier, technology plays a significant role in modern rigging. Choose a company that uses the latest tools and technologies, such as laser alignment systems, hydraulic jacking, and computerized load monitoring, to ensure precision and efficiency.

Reputation and References

Check the company’s reputation by reading customer reviews and asking for references. A reputable rigging company will have a proven track record of successful projects and satisfied clients.

Alltracon: A Reliable Partner for Efficient Rigging

When it comes to efficient rigging for manufacturing and production plants, Alltracon stands out as a trusted and reliable partner. With years of experience in the heavy machinery and industrial equipment rigging industry, Alltracon has built a reputation for delivering high-quality rigging services that meet the unique needs of manufacturing facilities.

Alltracon offers a full range of rigging services, including equipment installation, plant relocation, and heavy machinery transport. Their team of highly trained rigging professionals is equipped with the latest tools and technologies to ensure the safe and efficient handling of your equipment. From laser alignment systems for precision placement to hydraulic jacks for controlled lifting, Alltracon uses cutting-edge technology to get the job done right.

Safety is at the core of Alltracon’s operations. The company maintains strict safety protocols and provides ongoing training to its rigging crews to ensure compliance with industry regulations. This commitment to safety not only protects your equipment but also ensures the well-being of your workers and facility.

In addition to their technical expertise, Alltracon is known for its customer-focused approach. They work closely with clients to understand their specific rigging needs and develop tailored solutions that minimize downtime and maximize efficiency. Whether you need to move a single piece of machinery or relocate an entire production line, Alltracon has the experience and resources to handle projects of all sizes.

For manufacturing and production plants looking for a reliable rigging partner, Alltracon is the go-to choice for efficient, safe, and cost-effective rigging services.

Conclusion

Efficient rigging is an essential part of maintaining and optimizing operations in manufacturing and production plants. By utilizing advanced rigging techniques and technologies, plants can reduce downtime, increase safety, and ensure precise equipment placement. Choosing the right rigging partner, such as Alltracon, is key to achieving these benefits.

With the growing complexity of modern machinery and the need for precise operations, investing in efficient rigging services is more important than ever. Whether you’re installing new equipment, performing routine maintenance, or expanding your plant, efficient rigging ensures that your operations remain smooth, safe, and productive.

For those in need of a reliable partner for their rigging needs, Alltracon offers the expertise, technology, and commitment to safety that makes them a top choice in the industry.
